Pressure transmiter APT3100 - Autrol

1. Những tính năng chung của pressure transmiter APT3100

1.1 những thông tin sơ bộ về pressure transmiter

Dạng đo áp suất: Differential(DPIT), Gauge/ Absolute(PIT), Level(LIT), High Static Pressure, Flow Pressure(FIT)

Chứng nhận:  SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS, KCs, IP66/67, NEMA 4X

Tín hiêu kết nối:  4 to 20mA, HART, Loop Powered

Sai số:  ± 0.075% (option ± 0.04%) of CS*

Hiển thị: 3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode

Tín hiệu đo: Pressure, Flow, Level measurement for Oil & Gas, Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants and Refinary

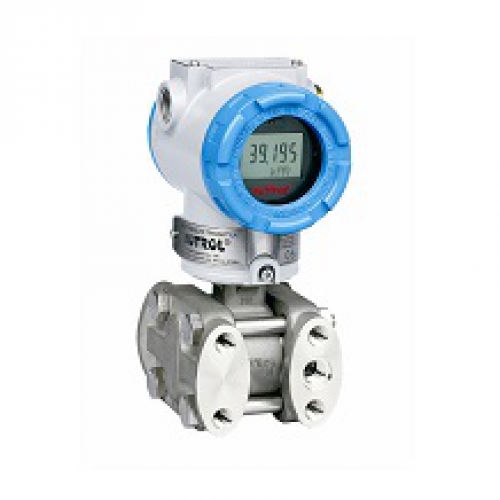

Hình ảnh cho pressure temperature autrol

1.2 Đặc tính kỹ thuật pressure transmiter

1.3 Những Model khác:

Model Type		APT3100-A Absolute pressure
Sensor Range		Min 0 to Max 2,500 kPa(A)
Calibrated Span		Min 2.5 to Max 2,500 kPa(A)
Max. Working Pressure		Max 5.25 MPa / 761 psi
Advantage		Absolute pressure measurement

Model Type		APT3100-D Differential pressure
Sensor Range		Min 0 to Max 6,895 kPa
Calibrated Span		Min 0.075 to Max 6,895 kPa
Max. Working Pressure		13.79 MPa / 2,000 psi
Advantage		Differential, Flow & Level measurement

Model Type		APT3100-H High Static pressure
Sensor Range		Min 0 to Max 2,068 kPa
Calibrated Span		Min 0.373 kPa to Max 2,068 kPa
Max. Working Pressure		31.02 MPa / 4,525 psi
Advantage		High static pressure measurement

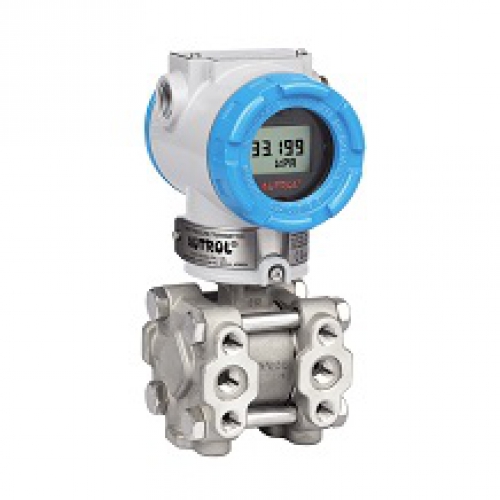

Model Type		APT3100- / -MP Multi-planar
Sensor Range		Min 0 to Max 6,895 KPa
Calibrated Span		Min 0.075 to Max 6,895 KPa
Max. Working Pressure		31.02 MPa / 4,525 psi (75 Mpa for GP)
Advantage		3 process connections including bottom direction

Model Type		APT3100-F
Sensor Range		Min 0 to Max 6,895 KPa
Calibrated Span		Min 0.075 to Max 6,895 KPa
Max. Working Pressure		13.79 MPa / 2000 psi
Advantage		Flow Totalizing, Additional 2 wires for Pulse output to relay/counter

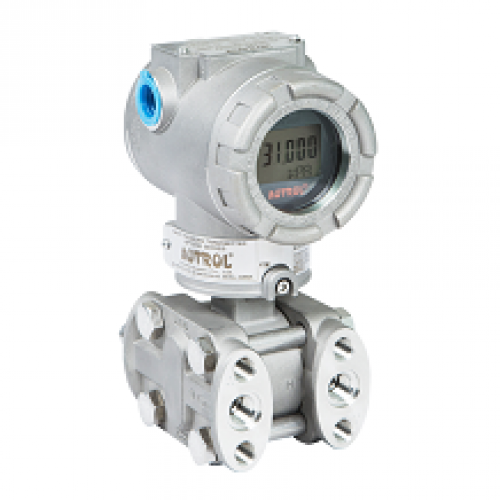

Model Type		APT3100-D-ST
Sensor Range		Min 0 to Max 6,895 KPa
Calibrated Span		Min 0.075 to Max 6,895 KPa
Max. Working Pressure		13.79 MPa / 2000 psi
Advantage		Flow Totalizing, Additional 2 wires for Pulse output to relay/counte

1.4 Tài liệu Pressure transmiter APT3100 - Autrol

Catalogue: http://www.autrol.com/wp-content/uploads/2017/10/catalogue_pressure-transmitter_APT3100.pdf.pdf

Operating Manual: http://www.autrol.com/manuals/APT3100%20Manual.pdf

APT3100-F Manual: http://www.autrol.com/wp-content/uploads/2017/11/APT3100F_Manual_ENG.pdCatalogueCatalogue
