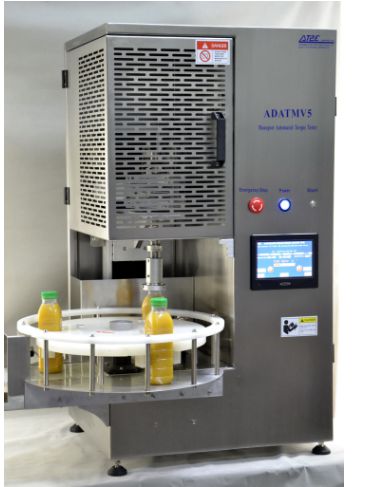

Máy đo mô-men xoắn tự động ADATMV5 S AT2E

Technical specifications: CFR21-11 / FDA compatible

Free operator torque controller ( on-line )

Legal weighing control suitable in option

Secure seal test suitable ( automatic bubble point control )

Using by touch screen

Measures in opening and closing directions

Measuring range: 00.00 to 99.00 Kgf.cm

6 measuring cycles: Torque closing / Reach position / Release + break / Release + break + over screw / Non-destructive test /– MORE ON REQUEST

Units: Kgf.cm / Inch.lbs / daN.cm / N.cm / N.m

Rotating angle & speed adjustable under certain cycle

Accuracy: ± 0.5 % of full scale

30 products memory

10 thresholds (limits) option

10 operators memory

Configuration by protected password (administrator)

Memorization up to 9999 measures

Dynamic display: statistics / hour / date

Display: product name / operator / batch N° / line N°

1 RS232 output and 1 printer output (software & printer)

Language: English / French / Spanish

Delivered with calibration certificate ASTM/ NIST/COFRAC/ DKD ENAC / UKAS

Easy-fast selector for cycles

Customized cycles

Special pneumatic chuck available

Auto-mode

Special auto mode with head number – filler storage

Special multi format system for both bottle and preform

Dynamometric system

110 / 230 V – 50/60 Hz

Automated part:

Safety door

Automatic zero before restarting cycle

Settable height of column for all samples

Mechanical specifications:

Stainless steel Frame

Choice of measuring chucks: Beverage / Cosmetic / Pharmacy

Dimensions: 1090 (L) x 710 (W) x 1120 (H) mm

Weight: 120 kg
