CẢM BIẾN NHIỆT ĐỘ RTD RHW500 - RADIX Việt Nam

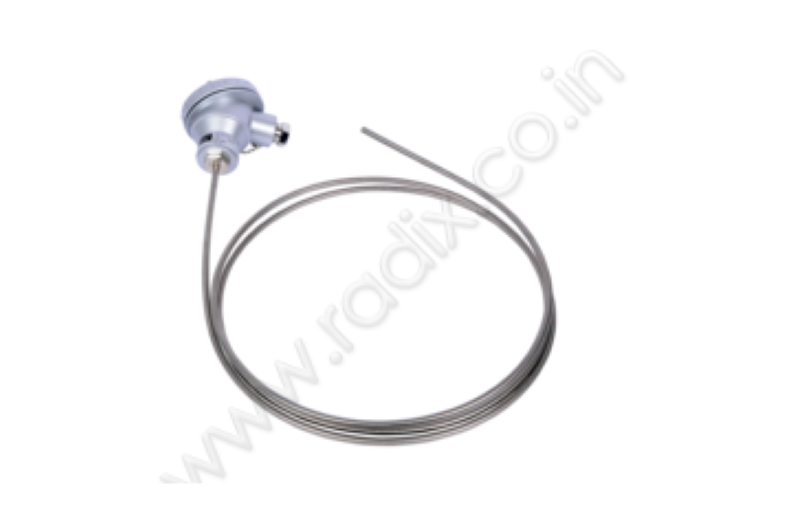

MINERAL INSULATED RTD SENSOR

Radix Mineral Induslated RTD sensors are made with compacted magnesium oxide (MgO) that make our sensors durable and vibration resistant. This range of products is widely used in industries like chemicals, food and pharmaceuticals. The measuring element in Mineral Insulated RTD can be designed in several configurations and conforms to the IEC 751 standard for RTD sensors. The sensors are made with weatherproof aluminium heads that protect the inner construction. As per the application, these mineral insulated RTD sensors can be constructed of Pt50, Pt100, Pt200, Pt500 or Pt1000; with 2, 3 or 4 wire single or dual assembly; and in Class A or B. Radix Mineral Insulated RTDs with Terminal Head offer high-utility by virtue of the mineral insulated sheaths which can be very long and bent or coiled as per the application. Choose from standard assemblies, free rotating fittings, hex nipples, round nipple connections, NUN assemblies, adjustable compression fittings, fixed flange connections or adjustable flange connections.

See less

• Variety of measuring element configurations
• Bendable sheath up to 50 meters long
• 50 mm long non bendable tip
• Temperature range: -50 to 400°C range
• 3, 4, 5, 6 and 8 mm diameters
• Different types of terminal heads available
• SS316L sheath material
• Copper or Nickel conductors
