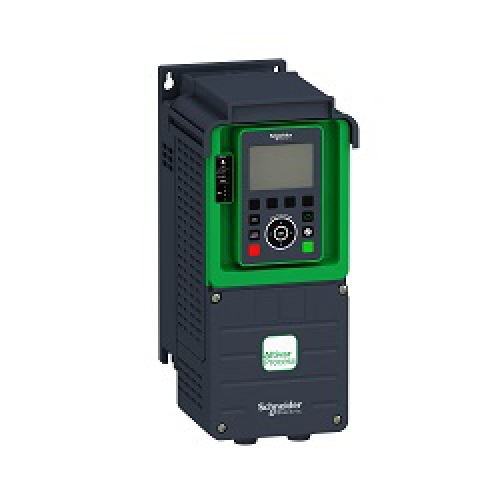

Biến tần Altivar ATV630U40M3 Schneider
- Mã SP:
- Giá : Liên hệ
-
Mã sản phẩm:ATV630U40M3
Xuất sứ:Pháp
Liên hệ tư vấn: 0917.943.068
Email: chien@tmpvietnam.comCông Ty TNHH và DV Tăng Minh Phát là nhà phân phối chính thức của hãng Schneider-Electric tại việt nam, chuyên cung cấp các thiết bị đo lường hãng Schneider-Electric tại Việt Nam,Schneider-Electric Việt Nam
Biến tần Altivar ATV630U40M3
Thông số kỹ thuật biến tần Altivar ATV630U40M3
| range of product |
Altivar Process ATV600
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| product specific application |
Process and utilities
|
|
| device short name |
ATV630
|
|
| variant |
Standard version
|
|
| product destination |
Synchronous motors
Asynchronous motors |
|
| mounting mode |
Wall mount
|
|
| EMC filter |
Without EMC filter
|
|
| IP degree of protection |
IP21 conforming to IEC 61800-5-1
IP21 conforming to IEC 60529 |
|
| degree of protection |
UL type 1 conforming to UL 508C
|
|
| type of cooling |
Forced convection
|
|
| supply frequency |
50...60 Hz - 5...5 %
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
200...240 V - 15...10 %
|
|
| motor power kW |
4 kW (normal duty)
3 kW (heavy duty) |
|
| motor power hp |
5 hp normal duty
4 hp heavy duty |
|
| line current |
15.1 A at 200 V (normal duty)
12.9 A at 240 V (normal duty) 11.7 A at 200 V (heavy duty) 10.2 A at 240 V (heavy duty) |
|
| prospective line Isc |
50 kA
|
|
| apparent power |
5.4 kVA at 240 V (normal duty)
4.2 kVA at 240 V (heavy duty) |
|
| continuous output current |
18.7 A at 4 kHz for normal duty
13.7 A at 4 kHz for heavy duty |
|
| maximum transient current |
20.6 A during 60 s (normal duty)
20.6 A during 60 s (heavy duty) |
|
| asynchronous motor control profile |
Optimized torque mode
Constant torque standard Variable torque standard |
|
| synchronous motor control profile |
Permanent magnet motor
Synchronous reluctance motor |
|
| output frequency |
0.0001…0.5 kHz
|
|
| speed drive output frequency |
0.1…599 Hz
|
|
| nominal switching frequency |
4 kHz
|
|
| switching frequency |
2...12 kHz adjustable
4...12 kHz with derating factor |
|
| safety function |
STO (safe torque off) SIL 3
|
|
| discrete input logic |
16 preset speeds
|
|
| communication port protocol |
Modbus TCP
Ethernet Modbus serial |
|
| option card |
Slot A: communication module, Profibus DP V1
Slot A: communication module, Profinet Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink |
| output voltage |
<= power supply voltage
|
|
|---|---|---|
| permissible temporary current boost |
1.1 x In during 60 s (normal duty)
1.5 x In during 60 s (heavy duty) |
|
| motor slip compensation |
Can be suppressed
Not available in permanent magnet motor law Automatic whatever the load Adjustable |
|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s
|
|
| braking to standstill |
By DC injection
|
|
| protection type |
Thermal protection: motor
Safe torque off: motor Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive |
|
| frequency resolution |
Display unit: 0.1 Hz
Analog input: 0.012/50 Hz |
|
| electrical connection |
Control: removable screw terminals0.5...1.5 mm²/AWG 20...AWG 16
Motor: screw terminal6 mm²/AWG 10 Line side: screw terminal4...6 mm²/AWG 12...AWG10 |
|
| connector type |
RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP
RJ45 (on the remote graphic terminal) for Modbus serial |
|
| physical interface |
2-wire RS 485 for Modbus serial
|
|
| transmission frame |
RTU for Modbus serial
|
|
| transmission rate |
10/100 Mbit/s for Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial |
|
| exchange mode |
Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
|
|
| data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
| type of polarization |
No impedance for Modbus serial
|
|
| number of addresses |
1…247 for Modbus serial
|
|
| method of access |
Slave Modbus TCP
|
|
| supply |
External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection |
|
| local signalling |
3 LEDslocal diagnostic:
3 LEDs (dual colour)embedded communication status: 4 LEDs (dual colour)communication module status: 1 LED (red)presence of voltage: |
|
| width |
144 mm
|
|
| height |
350 mm
|
|
| depth |
203 mm
|
|
| net weight |
4.6 kg
|
|
| analogue input number |
3
|
|
| analogue input type |
AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits
AI1, AI2, AI3 software-configurable current: 0...20 mA/4...20 mA, impedance: 250 Ohm, resolution 12 bits |
|
| discrete input number |
8
|
|
| discrete input type |
DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm
DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V) STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm |
|
| input compatibility |
DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
|
| discrete input logic |
Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1)
Negative logic (sink) (DI1...DI6), > 16 V (state 0), < 10 V (state 1) Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1) Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1) |
|
| analogue output number |
2
|
|
| analogue output type |
Software-configurable voltage AO1, AO2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Software-configurable current AO1, AO2: 0...20 mA, resolution 10 bits |
|
| sampling duration |
2 ms +/- 0.5 ms (DI1...DI4) - discrete input
5 ms +/- 1 ms (DI5, DI6) - discrete input 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input 10 ms +/- 1 ms (AO1) - analog output |
|
| accuracy |
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output |
|
| linearity error |
AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
AO1, AO2: +/- 0.2 % for analog output |
|
| relay output number |
3
|
|
| relay output type |
Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles |
|
| refresh time |
Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
|
|
| minimum switching current |
Relay output R1, R2, R3: 5 mA at 24 V DC
|
|
| maximum switching current |
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
|
| isolation |
Between power and control terminals
|
|
| Variable speed drive application selection |
Building - HVAC Compressor centrifugal
Food and beverage processing Other application Mining mineral and metal Fan Mining mineral and metal Pump Oil and gas Fan Water and waste water Other application Building - HVAC Screw compressor Food and beverage processing Pump Food and beverage processing Fan Food and beverage processing Atomization Oil and gas Electro submersible pump (ESP) Oil and gas Water injection pump Oil and gas Jet fuel pump Oil and gas Compressor for refinery Water and waste water Centrifuge pump Water and waste water Positive displacement pump Water and waste water Electro submersible pump (ESP) Water and waste water Screw pump Water and waste water Lobe compressor Water and waste water Screw compressor Water and waste water Compressor centrifugal Water and waste water Fan Water and waste water Conveyor Water and waste water Mixer |
|
