Chi tiết sản phẩm

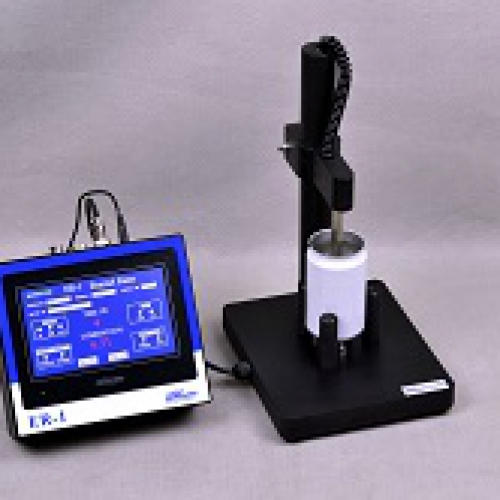

  • Thiết bị kiểm tra vỏ lon ER-1 AT2E Việt Nam

  • Mã SP:
  • Giá : Liên hệ
  • Mã sản phẩm:  ER-1

    Xuất sứ: Pháp

    Liên hệ: 0917 943 068

    Email: sales@tmpvietnam.com

    Đại lý hãng AT2E tại Việt Nam, chuyên cung cấp các thiết bị chính hãng AT2E tại Việt Nam, đại lý phân phối độc quyền thiết bị AT2E tại Việt Nam

    Principle:

    The instrument applies a constant voltage across the can body and an electrode immersed in the electrolysis filled with water, and measures the resulting current. The voltage during the test is 6.3 VDC.

    The operating range is 0 to 300 milliamps with a resolution resolution of 0.1 ma.

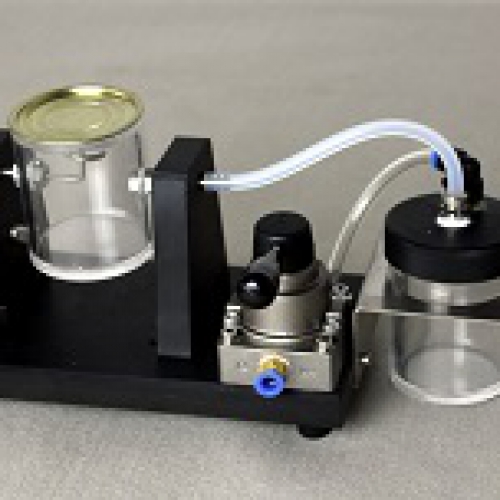

    The bonnet support consists of a container mounted on a pivot. The cut is beveled to make a tight seal on the canopy of the box. An electrode and the vacuum connection are mounted in the container. On the base, a tap to create the vacuum and a movable arm, complete the electrical circuit when the assembly is reversed.

Technical data :



  • Sample type: Boxes in two and three pieces, aerosols and different types of hoods
  • Range: 0 to 300 mA
  • Resolution: 0.1 mA
  • Accuracy: ± 5%
  • Power supply: AC 115/230 V to DC9V
  • Rear panel: RS232 serial output
  • Screen size: L 212 x W 185 x H 150 mm
  • Size of the box support: L 200 x W 235 x H 370 mm
  • Weight: 5 kg

Characteristics :

  • Tests the coverage of the enamel layer inside cans, drinks, and aerosols and also different types of hoods.

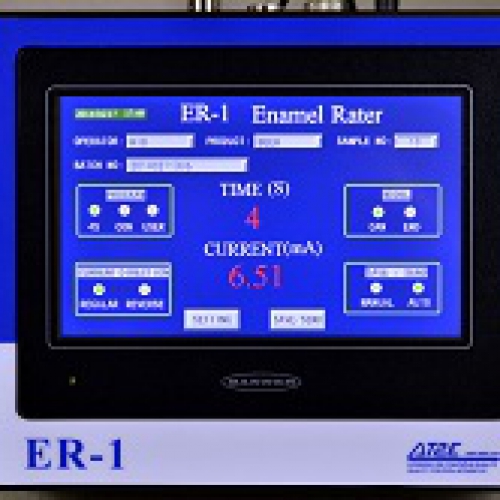

  • Displays an index of the amount of metal exposed by an incomplete enamel cover by a clear view of the digital screen with LEDs.
  • Digital screen
  • RS 232 output
  • Auto calibration mode
  • Identifies the area not covered
