  • Thiết bị kiểm tra đồng tâm chai nhựa UBPT-1 AT2E Việt Nam

  • Mã SP:
  • Giá : Liên hệ
  •

    Mã sản phẩm: UBPT-1

    Xuất sứ: Pháp

    Liên hệ tư vấn: 0917.943.068
    Email: chien@tmpvietnam.com

    Đại lý hãng AT2E tại Việt Nam, chuyên cung cấp các thiết bị chính hãng AT2E tại Việt Nam, đại lý phân phối độc quyền thiết bị AT2E tại Việt Nam

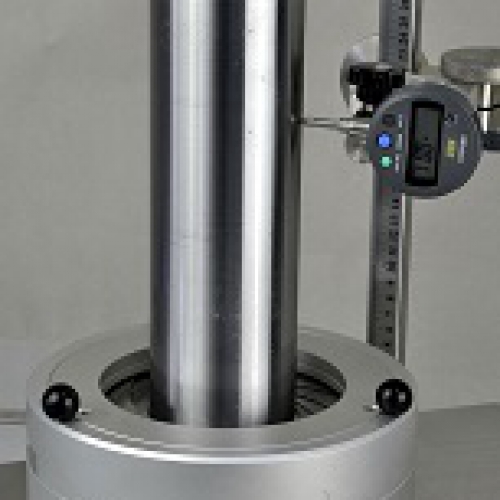

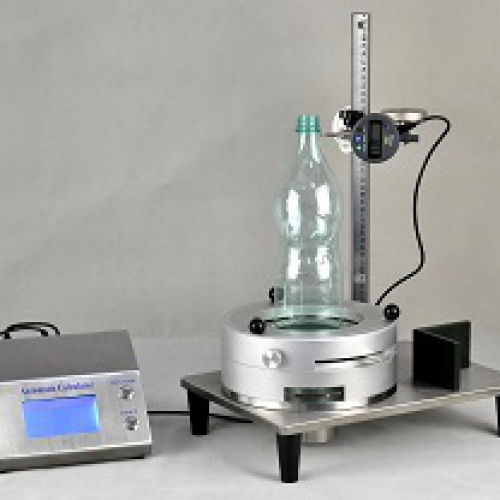

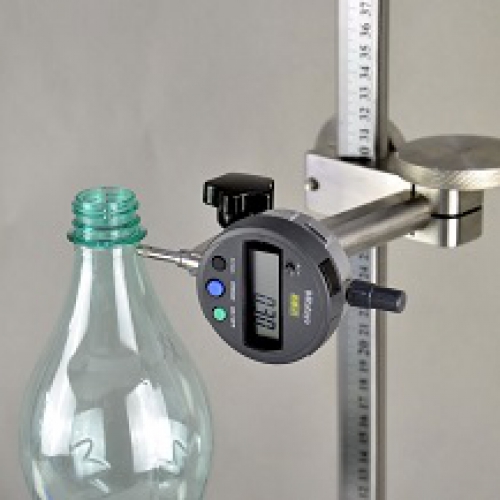

    UBPT-1 Universal Bottle Perpendicularity Gauge is used to measure the perpendicularity (deviation) of bottle and it’s a standard equipment for packaging and beverage industries.

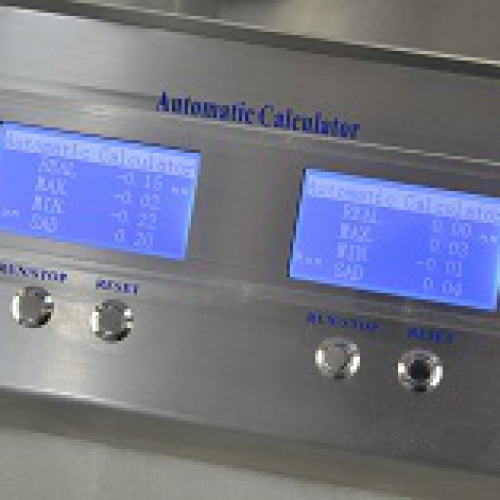

    It’s applicable for various sizes of bottle with the special design of clamping and rotatory system. With automatic calculator, data can be sent to the calculator and read easily. The MAX, MIN, and SAD (Sum of absolute difference between “MAX” and “MIN”) values will be displayed on the calculator which is very convenient for the operator.

Description

Technical specifications:

  • Sample range:
    • 50 – 120 mm in diameter (bigger by order)
    • 110- 350 mm in height (bigger by order)
  • Measuring range: 0 -10 mm
  • Resolution: 0.01 mm
  • Dimensions: 355 (L) x 250 (W) x 515 (H) cm
  • Net weight: 20 kg
