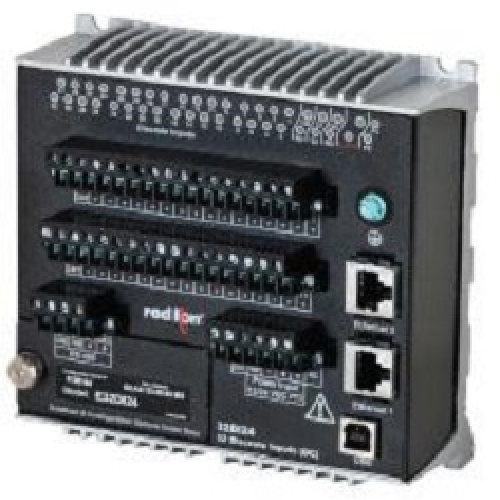

  • Thiết bị chuyển mạch E3 I/O™ Modules Redlion

  • Mã SP:
  • Giá : Liên hệ
  • Mã sản phẩm: E3 I/OTM Modules Redlion

    Xuất sứ: USA

    Liên hệ: 0917 943 068

    Email: sales@tmpvietnam.com

    Công Ty TNHH và DV Tăng Minh Phát là nhà phân phối chính thức của hãng Redlion tại việt nam, chuyên cung cấp các thiết bị đo lường và điều khiển hãng Redlion tại Việt Nam, Redlion Việt Nam



Overview:
Red Lion's rugged E3 I/O™ Ethernet-enabled I/O module platform provides powerful networking and reliable remote monitoring and control capabilities for harsh industrial environments. With all-metal housing, wide environmental specifications and industry certifications, our suite of 17 E3 I/O modules offer up to 34 mixed I/O points to meet varying requirements. Add high-density I/O to our award-winning Graphite® HMIs or deploy in remote stand-alone applications.

Connectivity:
Our high-density E3 I/O modules offer dual Ethernet ports and provide a variety of network modes including redundancy that support TCP/IP, ARP, UDP, ICMP, DHCP, HTTP, Modbus UDP/TCP Slave mode, Modbus UDP Master mode, Sixnet UDR UDP/TCP Slave mode and Sixnet UDR UDP Master mode. Additionally, built-in security enables permission-level access and firewall protection to help prevent unauthorized users. Our E3 I/O modules also offer RS-485 serial connectivity and USB connectors for easy management of and communication to deployed assets.

Performance:
Providing uncompromising performance in harsh environments, our E3 I/O modules feature redundant 10-30 VDC power inputs (24 VDC nominal). Fast 1ms discrete response times to Ethernet queries for real-time monitoring and control capabilities.

Environmental:
Available in DIN-rail and panel-mount form factors, our E3 I/O modules feature rugged metal enclosures and are designed and built for harsh environments with -40° to 75°C operating temperatures and UL Class I, Division 2 Group A, B, C, D listings. With built-in self-resetting fuses, these I/O modules will provide years of reliable operation in any industrial environment.

Crimson Software
Red Lion’s powerful Crimson® software is a programming platform that unlocks the power of E3 I/O modules with simple drag-and-drop, point-and-click configuration. And unlike competitive I/O modules that charge extra for cumbersome software, Crimson software is included with each E3 I/O module.
