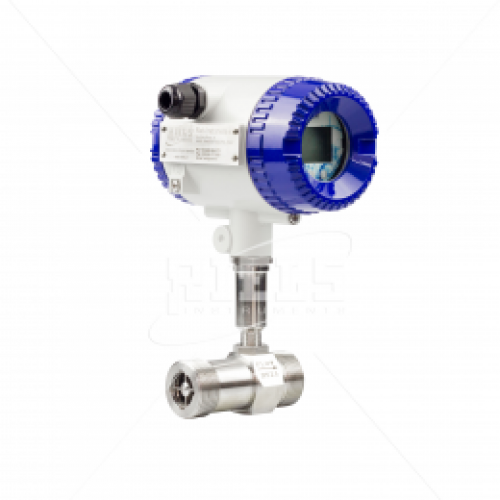

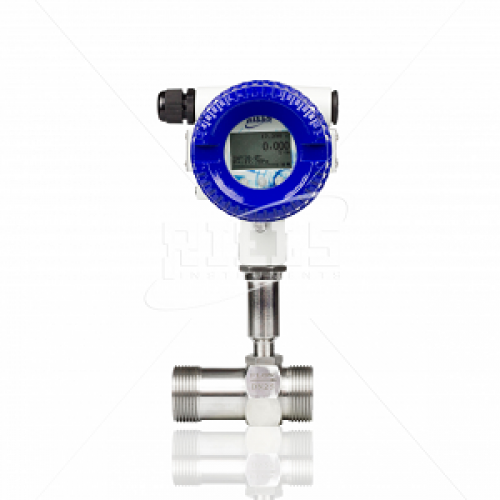

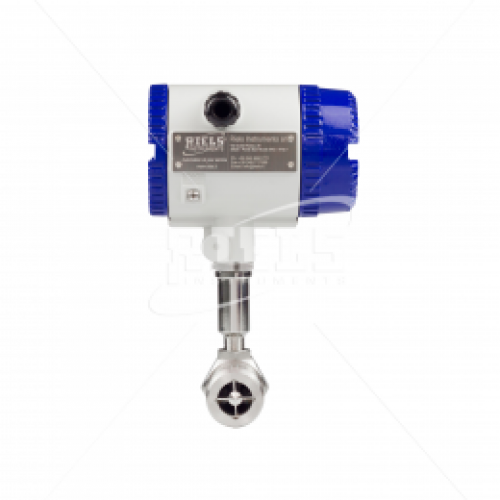

Đồng hồ đo lưu lượng RIF200-B/C

Measuring principle:

•

• Turbine

Measuring range / adjustment:

• m3/h
  0,04÷0,25 Process connection 1/2"
  0,1÷0,6 Process connection 1/2"
  0,2÷1,2 Process connection 1/2"
  0,6÷6 Process connection 1"
  0,8÷8 Process connection 1"
  1÷10 Process connection 1"1/4
  1,5÷15 Process connection 2"
  2÷20 Process connection 2"
  4÷40 Process connection 2" 1/2

Precision Class:

•

• ±0,5% VFS

• ±1% VFS

• [up to the model]

Outputs available:

•

• Frequency

Operating voltage [V]:

•

• 12÷24 Vdc

Operating temperature:

•

• -20÷+120 [°C]

•

Pressure max:

Process connection:

•

• Thread GAS

Materials in contact with the media:

•

• Stainless steel AISI 304

• Stainless steel AISI 316

• [Depending on the model]

Degree of protection:

•

• IP65

Approvals:

•

• EC Declaration of Conformity
