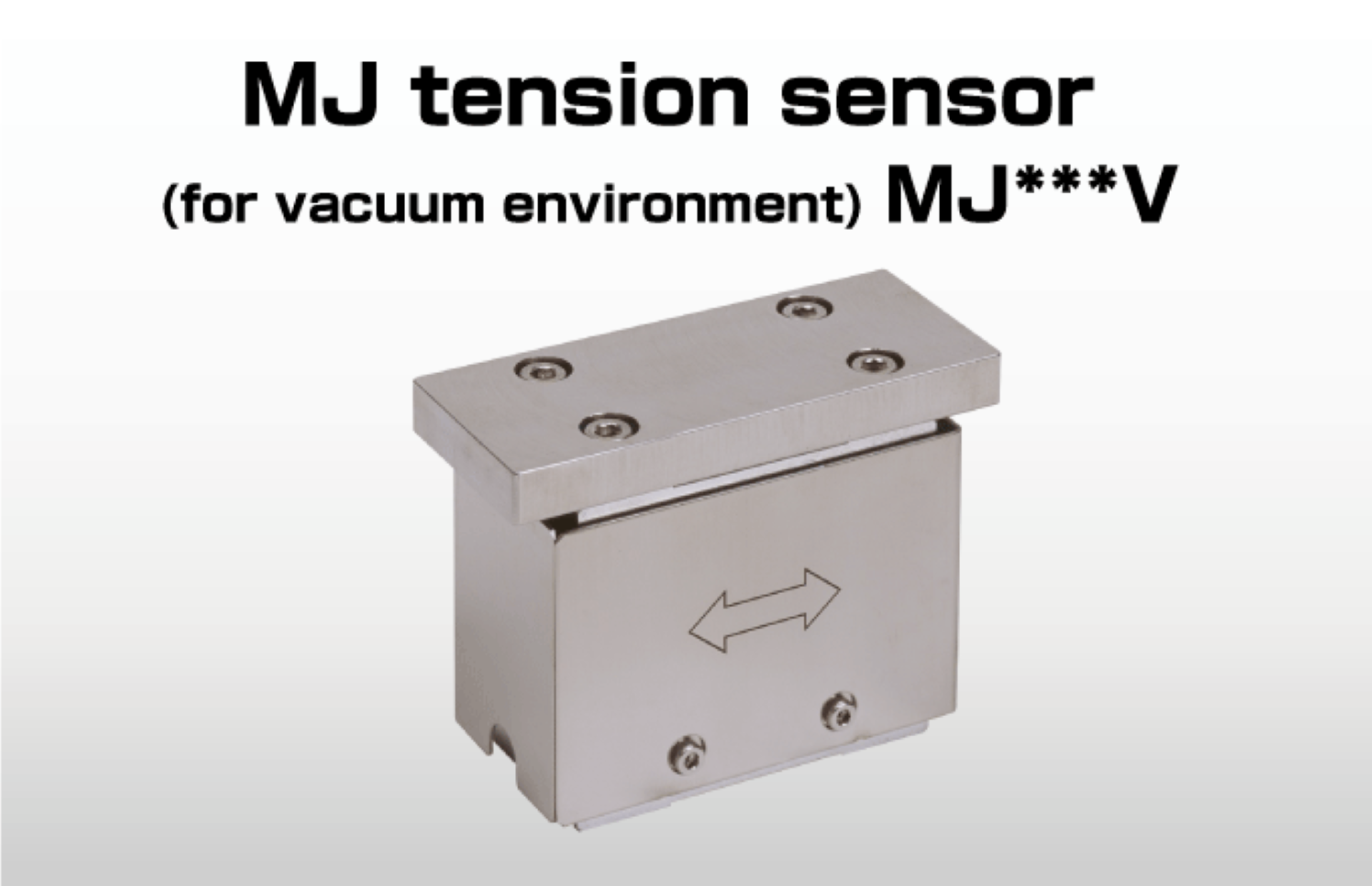

  • Cảm biến đo lực căng MJ Nireco

  • Mã SP:
  • Giá : Liên hệ
  • Mã sản phẩm: MJ

    Xuất sứ: Japan

    Liên hệ: 0917 943 068

    Email: sales@tmpvietnam.com

    Công Ty TNHH và DV Tăng Minh Phát là nhà phân phối chính thức của hãng NIRECO tại việt nam, chuyên cung cấp các thiết bị đo lường và phân tích khí độc hại hãng NIRECOtại Việt Nam, NIRECO Việt Nam

Overview


Introducing a sensor that is robust enough to handle water when cleaning a production line.

The MJ tension sensor is the ideal high-performance tension sensor for producing sophisticated plastic films. It is essential for tension control of sophisticated plastic films used in leading-edge industries, including flat-screen TVs, rechargeable batteries, thin and light solar cells, and organic EL lighting, which is expected to become the next generation of lighting.

A tough tension sensor

The MJ tension sensor has an IP66-compliant, highly-durable protective housing.
We maximized robustness to enable tension to be stably detected even under the harshest conditions. The high-precision protective housing makes it difficult for water droplets and dust to penetrate, allowing the sensor to be washed with water without constraint when washing a production line.


  • The high spring-steel rigidity of the MJ tension sensor provides a high resonance point, making it ideal for high-speed lines.
  • The load displacement of the MJ tension sensor is extremely low, making it effective for thin web lines (i.e., film, foil, etc.).
  • The stainless version has an IP66-compliant protective housing that can handle being splashed with water when cleaning a production line.
  • The use of a mono-block structure provides outstanding linearity and hysterisis.
  • The MJ sensor is compact but highly robust.
Model MJ050 MJ200 MJ500 MJ1000
  Diagram number MD0000320 MD0000330 MD0000340 MD0000350
*1 Rated tension (N) 50 200 500 1000
*1,4,5 Maximum roll load (N) 200 200 500 1000
*1,4 Maximum overload 700 2000 5000 10000
  Roll displacement (μm·N) 0.36 0.12 0.05 0.03
*2 Resonance frequency (Hz) 105.0 143.8 140.9 128.6
  Frequency response (Hz) 300
*3 Main unit mass (kg) 0.9 1.7
  Direction of resultant tension force Forward or reverse
  Mounting angle Any desired angle
  Supply voltage ±15VDC ±1V (+15V/50mA, -15V/10mA)
  Ambient temperature/humidity 0 to +50°C, 35 to 85%RH (No condensation permitted)
  IP Protection Rating IP30
Notes:
*1. The figures for rated tension, maximum roll load, and maximum overload are for double-sided detection. For single-sided detection the above figures should be halved.
*2. The resonance frequency figures are for the tension load during double-sided detection and at maximum roll load.
*3. The frequency response figure is with respect to a change of 1/10 in the rated tension.
*4. For the MJ050, the maximum roll load is not equal to the rated tension (double-sided load). The maximum roll load is 200 N. Consequently, the maximum overload = the rated tension × 10 + the maximum roll load.
*5. The maximum overload represents the maximum value of the force exerted in the direction of the resultant force.
