Chi tiết sản phẩm

  • Bộ nguồn CUS1500M TDK Lambda

  • Mã SP:
  • Giá : Liên hệ
  • Mã sản phẩm:CUS1500M

    Xuất sứ: Japan

    Liên hệ: 0917 943 068

    Email: sales@tmpvietnam.com

    Công Ty TNHH và DV Tăng Minh Phát là nhà phân phối chính thức của hãng TDK Lambda tại việt nam, chuyên cung cấp các bộ nguồn hãng TDK Lambda tại Việt Nam, TDK Lambda Việt Nam

TDK-Lambda CUS1500M Medical and Industrial Power Supplies

TDK-Lambda CUS1500M Medical and Industrial Power Supplies feature 1500W output power and output voltage options of 12V, 15V, 24V, 36V, and 48V. This single-output series of power supplies offers an 85VAC to 265VAC input voltage range, low audible noise, and a variable speed fan which provides a quiet power solution. The high-power CUS1500M devices are approved by medical safety standard agencies (ES/CSA/EN60601-1 Ed.3.1) and passed 2MOPP (Means Of Patient Protection) for isolation between input and output.

FEATURES

  • Low audible noise (<45dBA)
  • EN55011/55032-B EMI
  • Enclosed construction
  • Compact size
  • Medical and Industrial Certifications
  • 7-year warranty

SPECIFICATIONS

  • AC Input Voltage Range: 85VAC to 265VAC (47Hz to 63Hz)
  • DC Input Voltage Range: 120VDC to 340VDC
  • Input Current: 16/8A
  • Temperature Coefficient: <0.02%/°C
  • Hold Up Time: 20ms
  • Leakage Current: <0.3mA
  • Standby Voltage: 5V, 1A (always on)
  • Operating Temperature Range: -20°C to +60°C
  • Storage Temperature Range: -30°C to +75°C
  • Operating Humidity: 20%RH to 90%RH
  • Storage Humidity: 10%RH to 90%RH
  • Cooling: Internal variable speed fan, intake from front
  • Shock: <196.1m/s2
  • Weight: 3000g Typ.
  • Dimensions: 127mm x 63mm x 261mm

APPLICATIONS

  • Medical
  • Industrial
  • Test & Measurement
  • Broadcast

DIMENSIONS

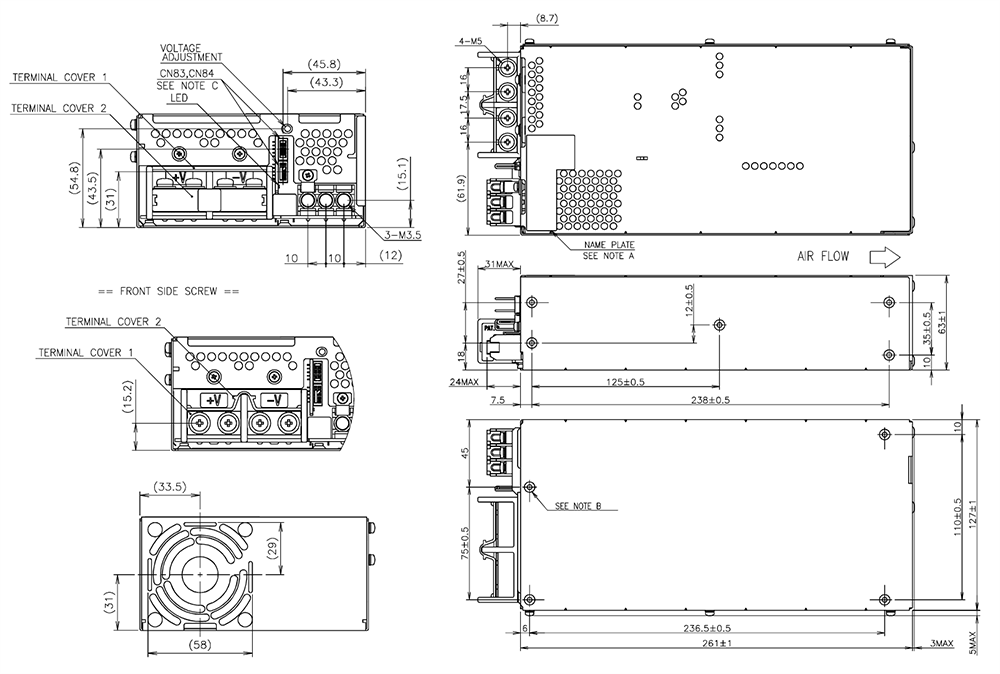

Mechanical Drawing - TDK-Lambda CUS1500M Medical and Industrial Power Supplies

View Results ( 5 ) Page
Part Number Datasheet Description
CUS1500M-48 Switching Power Supplies 1536W 115-230VACin 48Vout 32A Medical
CUS1500M-15 Switching Power Supplies 1500W 115-230VACin 15Vout 100A Medical
CUS1500M-36 Switching Power Supplies 1512W 115-230VACin 36Vout 42A Medical
CUS1500M-12 Switching Power Supplies 1500W 115-230VACin 12Vout 125A Medical
CUS1500M-24 Switching Power Supplies 1512W 115-230VACin 24Vout 63A Medical
