At-roller-surface detection and off-roller detection
This system can be used in both at-roller-surface detection (that reduces the effects of play in the web on detection) and off-roller detection (that reduces the influence of the type of roller material on detection).
A wide range of light sources and filters
Combinations of the built-in LED lighting unit and the filters enable the system to cope with a range of roller surfaces including chrome-plated rollers and rubber rollers
- Pattern matching
The system takes reference positions from within the entire image (such as the line, edge, pattern and text) and stores them in memory, detects web meandering and sends out correction signals.
- ZNCC (Zero-mean Normalized Cross-Correlation)
Stable detection is assured, even if there are variations in external light and print density.
- Easy search function
Simply specify the reference position from within the entire image and press the Search button to record the reference position in memory and start the detection.
Display and Operation
System components when under AE500 control
Supplied by the NIP100
||0 to +50°C (No condensation)
||High brightness color LED (white)
||CCD area sensor （VGA W640×H480）

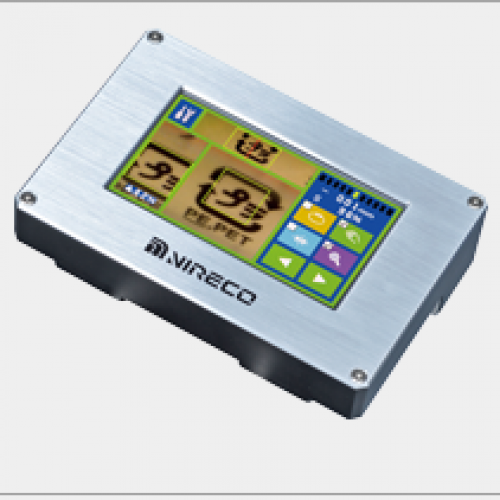

||Color touch-screen panel (4.3 inch)
|Analog deviation signal output
||DC 0 to +5V
|Lock signal output
|Sensor roller diameter
||φ 80mm or greater
||ADC12 / A5052
||ADC12 / SPCC
